The Brunton range of Pocket Transit compasses is made in the USA. Below you'll find the respective features and specs.
![case](https://cdn.shopify.com/s/files/1/0078/2267/1924/files/8d_240x240.png?v=1653920060)
Brunton 5008 Pocket Transit with lightweight composite outer casing
The 5008 model makes use of the traditional transit measurement method. The composite body on the ComPro is ultralight and tough – this transit even floats!
Features:
- The precision NdFeB disc magnet provides very accurate readings and resists demagnetization.
- This magnetic needle can be balanced for use almost anywhere in the world.
- Induction dampening makes for a quick-settling needle.
- The sapphire jewel bearing allows for smooth needle movement throughout the life of the instrument.
- The needle lock button can lock or free the needle, depending on the model.
- The internal components are sealed with an O-ring for improved water and dust resistance.
- Each model is available in the Azimuth (0-360) format.
- Each comes with a protective leather case, perfect for carrying your Brunton in the field.
- The mirror enables sighting and measurement of bearings and vertical angles.
- Short and long sights give the user additional functionality and accuracy when shooting bearings.
![20b](https://cdn.shopify.com/s/files/1/0078/2267/1924/files/20b_240x240.png?v=1653920060)

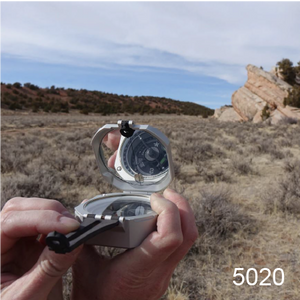

Brunton 5020 Standard Pocket Transit with aluminium outer casing
The 5020 model's body is CNC-milled and hard-anodized for simplicity and durability.
In addition to the 5008's 10 features listed above, the 5020 includes the following:

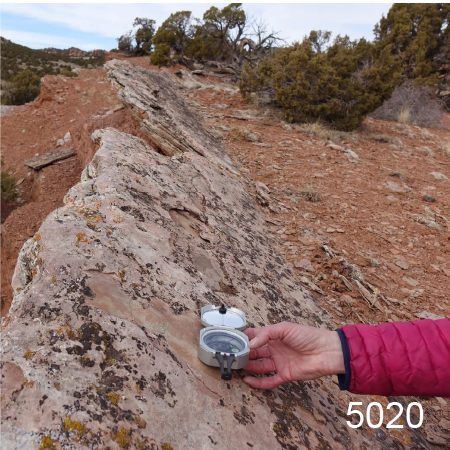

- The flat bottom design with a non-slip silicon foot allows for low-angle strike and dip measurements.
- An unobtrusive bottle opener that stays out of the way until needed.
![5010b](https://cdn.shopify.com/s/files/1/0078/2267/1924/files/5010b_240x240.png?v=1653920060)
Brunton 5010 Geo Pocket Transit with aluminium outer casing
The 5010 model can measure Dip angle & Dip azimuth at the same time.
In addition to the 5008's 10 features listed above, the 5010 includes the following:
- The hinge dial allows for simultaneous measurement of dip & dip direction or trend & plunge on certain surfaces and orientations.
- The lid opens to 220° and the hinge dial has indicators of which needle to read for plunge direction.
- The flat bottom allows for easier dip angle and dip azimuth measurements at low angles.
- Dual long-level bubbles allow the user to level the compass from the sides.
- The needle can be set to lock automatically, ensuring accurate readings when the face of the instrument is not visible.
![5012b](https://cdn.shopify.com/s/files/1/0078/2267/1924/files/12b_240x240.png?v=1653920060)

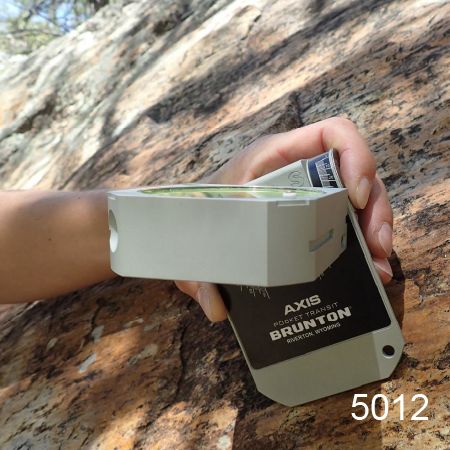

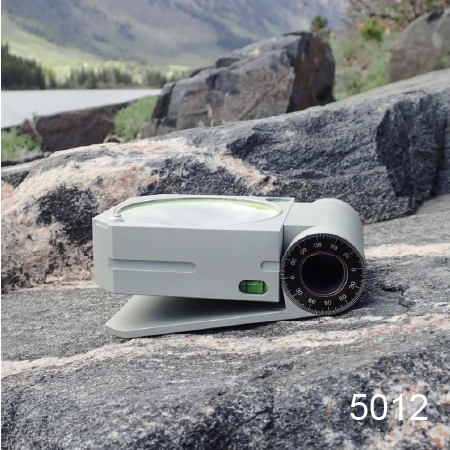

Brunton 5012 Axis Pocket Transit with aluminium outer casing
The 5012 Axis model can take simultaneous measurements of strike & dip, trend & plunge, dip & dip direction, and bearing & angle, making data collection faster and easier than ever.
In addition to the 5008's first 8 features listed above, the 5012 includes the following:
- Unique dual axis hollow hinge allows for easy and intuitive measurements of any line or plane.
- The lid rotates 360˚ around both axes, making measurements possible for any surface including overhangs. The lid can extend or create the measurement surface itself.
- The default orientation of compass North makes this the only transit in the world that can measure strike & dip simultaneously. A simple rotation of the azimuth ring also allows simultaneous measurement of dip angle & dip direction if that is preferred.
- A secondary axis of rotation and lid protractor allows simultaneous measurement of trend & plunge.
- The hollow hinge/sighting tube allows for direct horizontal and vertical sighting measurements.

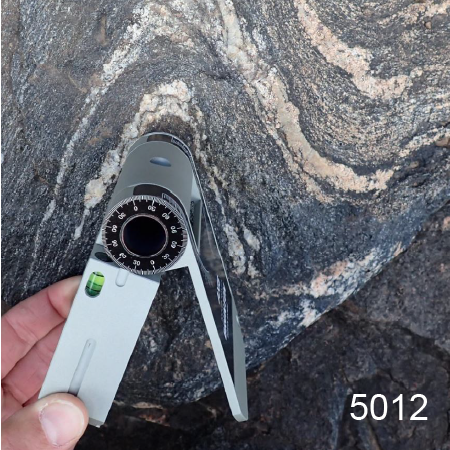

- Hinge dial enables dip angle measurements and also serves as a versatile protractor.
- Excellent contact and sighting measurement capabilities.
- Dual long-level bubbles allow the user to level the compass from the sides and bottom.
- The flat bottom allows for easier dip angle and dip azimuth measurements at low angles.
- The needle can be set to lock automatically, ensuring accurate readings when the face of the instrument is not visible.
Specifications
Description |
5008 |
5020 |
5010 |
5012 |
Measurement style |
Strike & Dip |
Strike & Dip |
Strike & Dip OR Dip & Dip Direction |
Unique, simultaneous methods
|
Dimensions |
3.9x2.8x1.2" |
3.1x2.8x1.3" |
3.8x2.8x1.3" |
3.9x2.8x1.2" |
Dimensions |
100x70x30mm |
79x71x34mm |
96x71x33mm |
100x70x30mm |
Weight |
5.7oz | 162g |
6.9oz | 195g |
12.8oz | 363g
|
12.1oz | 341.6g |
Azimuth |
+/- 1/2˚ w/ 1˚ graduations
|
+/- 1/2˚ w/ 1˚ graduations
|
+/- 1/2˚ w/ 1˚ graduations
|
+/- 1/2˚ w/ 1˚ graduations
|
Hinge Dial |
N/A |
N/A |
+/- 1/2˚ w/ 2˚ graduations
|
+/- 1˚ w/ 2˚ graduations
|
Internal clinometer |
+/- 1/2˚ w/ 1˚ graduations
|
+/- 1/2˚ w/ 1˚ graduations
|
+/- 1/2˚ w/ 1˚ graduations
|
Plumb clinometer: +/-1/2˚ w/1˚graduations
|
Percent graduations |
5% |
5% |
5% |
Lid protractor: +/- 1/2˚ w/ 1˚ graduations
|
Declination adjustment |
+/- 180˚
|
+/- 180˚
|
+/- 180˚
|
+/- 180˚
|
Qty / pack |
Each |
Each |
Each |
Each |
GeoPro Supplies provides a selection of Brunton tools - view the Brunton Product Matrix here.
