Brunton OmniSight Compass & OmniSlope Inclinometer

The Brunton OmniSight compass & OmniSlope inclinometer are enclosed in a CNC-machined anodized aluminium housing, which ensures durability and reliability. In addition, they each have a shock absorbing silicon cover and a protective leather case, making them comfortable to hold and carry in the field.

Below you'll find the respective features and specs.

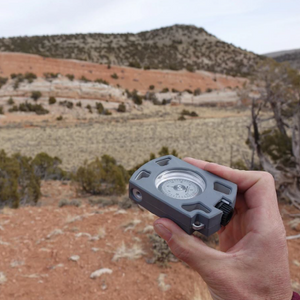

Brunton OmniSight Sighting Compass

A compact and sturdy sighting compass that allows accurate simultaneous forward and reciprocal bearing measurements using four different scales

  • Offers precision measurements of horizontal bearings through direct sighting.
  • Allows for 4 different scales of bearing measurements:
  1. Scale 1: MILS (0-6400)
  2. Scale 2: Quadrant 0-90°
  3. Scale 3: Reciprocal Azimuth 0-360°
  4. Scale 4: Azimuth 0-360°
  • Dual readings on the top dial face in Azimuth or Quadrant with 5° graduations.
  • An internal neodymium magnet guarantees accuracy and resists magnetic interference.
  • Sapphire jewel bearing with anti-static dampening fluid.
  • Available in Northern Hemisphere, Equatorial, and Southern Hemisphere models.
  • Offers up to 10x magnification with an adjustable lens.
  • Use as a stand-alone unit or thread onto a Jacob’s Staff/trekking pole or non-magnetic tripod with built-in threads.

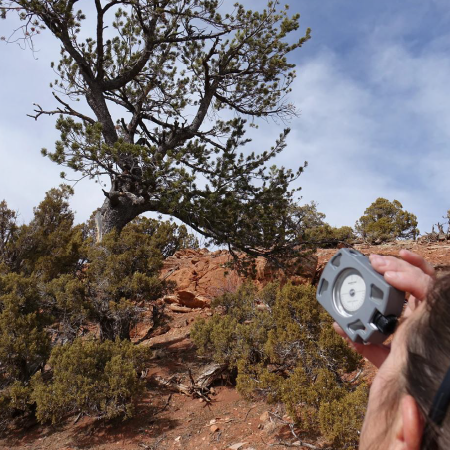

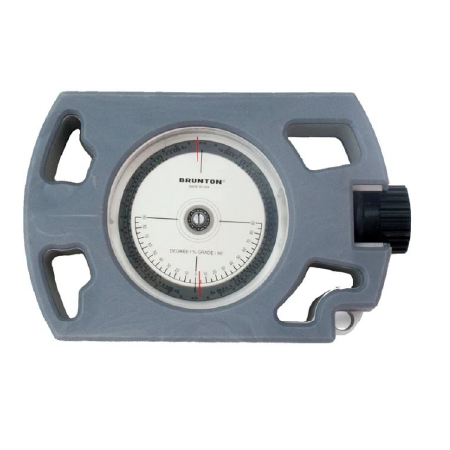

Brunton OmniSlope Sighting Inclinometer

A compact and sturdy sighting inclinometer that allows for quick and accurate vertical angle measurements using 3 different scales.

  • Offers precision measurements of vertical angles through direct sighting.
  • Allows for 3 different scales of angular measurement above and below horizontal: Slope (Degrees) 0-90°; Forestry Chain (feet) 0-200'; & Percent Grade 0-150%.
  • Side view of slope degree and percent grade.
  • Offers up to 10x magnification with an adjustable lens.
  • Use as a standalone unit or thread onto a Jacob’s Staff/trekking pole.



    Specifications

    Description OmniSight Compass OmniSlope Inclinometer
    Dimensions 2.5" x 3.75" x 0.875" 2.5" x 3.75" x 0.875"
    Dimensions  63 x 95 x 22mm 63 x 95 x 22mm
    Weight 5oz | 142g 5oz | 142g
    Resolution 1˚ 1˚
    Range 180˚ 360˚
    Qty / pack Each Each



    GeoPro Supplies provides a selection of Brunton tools - view the Brunton Product Matrix here.
