Core Orientator / Rocket Launcher

A non-magnetic, portable device designed to securely hold and position drill core for
accurate orientation and dip measurement in the field.

Features:

• Non-magnetic for precise compass readings
• Suitable for BQ to PQ core sizes
• Holds core lengths up to 60 cm
• Adjustable dip angle from 0° to 90°
• Clear, unobstructed core view – no extra support frames
• 2 cm beam gap for easy orientation line alignment

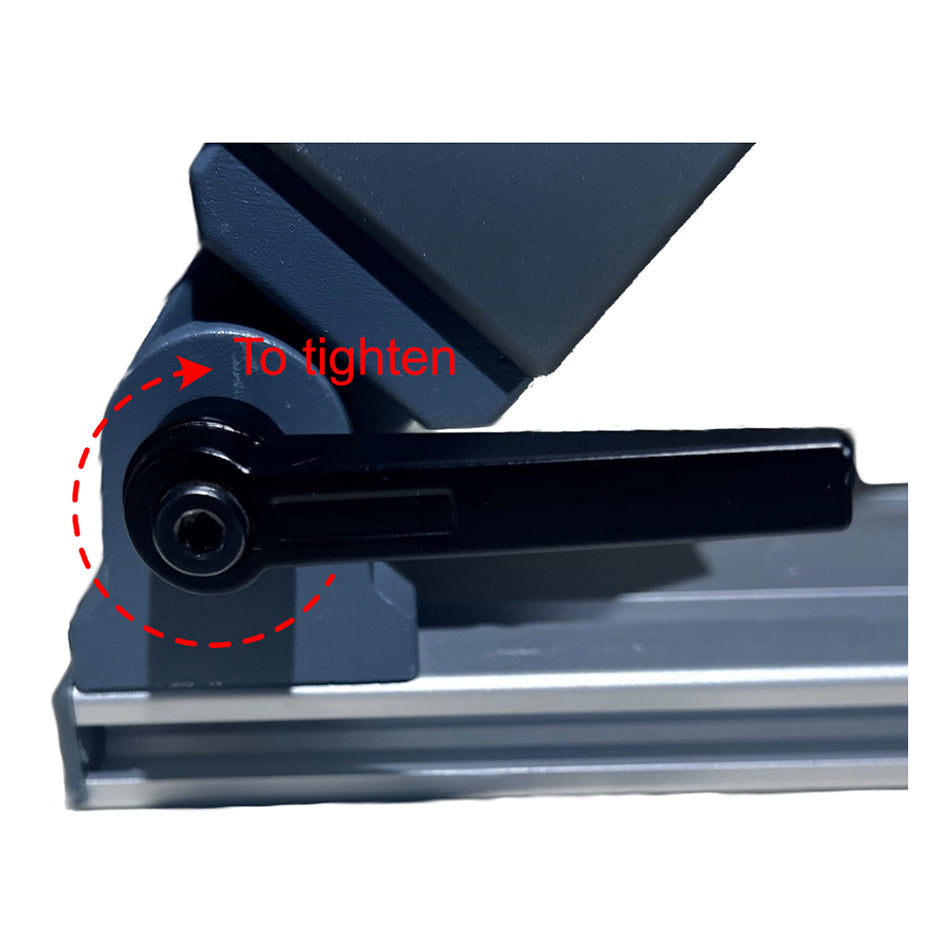

• Heavy-duty lockable hinges (rated to 150 kg)

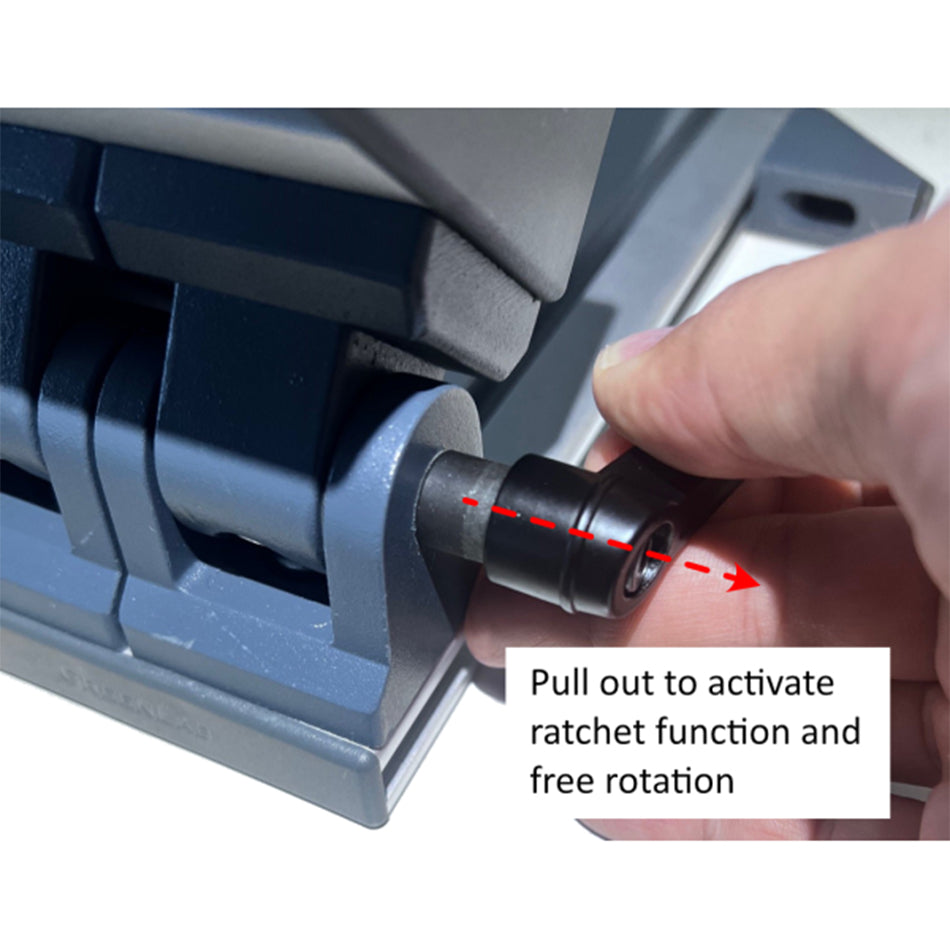

• Ratchet-function levers for quick tightening in confined spaces
• Side wings for added stability
• Lightweight and portable – 2.7 kg

Specifications:
